Flange Insulation

All types of AMG Flange Insulation sets are readily available.

flange insulation kit

Flange Insulation Gasket Kits

Flange Insulation (or Isolation) Gasket Kits are typically used on offshore installations, seawater environments, chemi­cal installations and oil refinery pipelines where galvanic corrosion protection and electrical insulation is required.

Constructed of high quality materials that have a high dielectric constant and low water absorption, Flange Insulation Kits are available in various configurations to suit your requirements.

Each kit contains an insulating gasket, isolating bolt sleeves and washers all correctly sized according to the flange standard – all packed together to ensure safe and correct site assembly.

Contact Our Team



diagram showing gasket type

Type E

With Full Face Neoprene Faced Phenolic gasket.

technical diagram

Type F

Contains IBC Neoprene Faced Phenolic gasket for RF flanges.

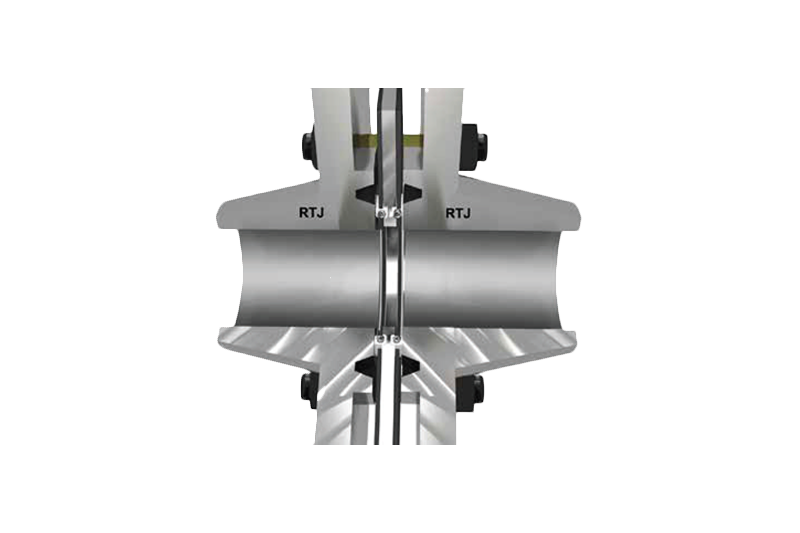

rtj gasket diagram

High Specification

Designed for critical/extreme applications – our High Specification Isolating systems are suitable for use on RTJ, RF and FF flanges.
